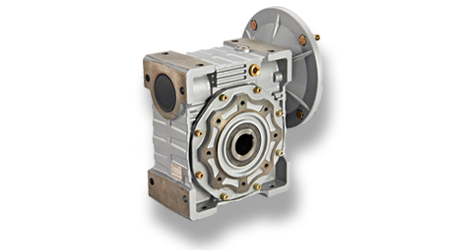

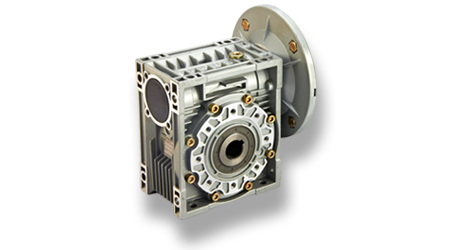

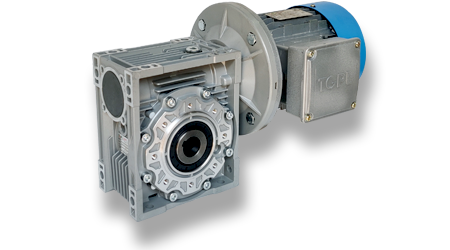

Worm Geared Units
TW Series worm geared unit is known for its high durability & the gearbox is made of high-quality aluminium alloy up to 90 model & cast iron from 110 model onwards. TW Series comes in compact design and known for its flexible (Universal) mounting options, various optional accessories help mounting options further more flexible.
Catalog download
Configure your own product in three steps
Product Features
- High Durability
- Superior efficiency as a result of precise machining.
- Low noise
- Hardened worm shaft for high strength.
- Worm Shaft made of 20Cr, carbonize & quencher heat treatment makes the hardness of gear up to 56-62HRC.
- Flexible mounting, wide options for mounting
- High reduction ratio
- Elegant appearance.
- Lubricated for life.
- Worm wheel made of Stannum bronze alloy
Input Power Range
0.12kw to 7.5kw
Gear Ratios
7.5 to 100
Mounting Options
Foot, Flange, Torque Arm, Foot Cum Flange.
Options Available

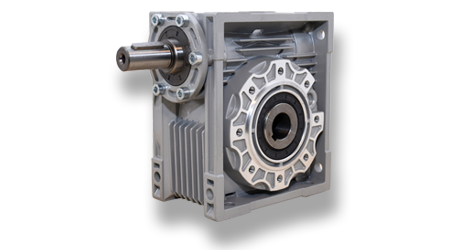

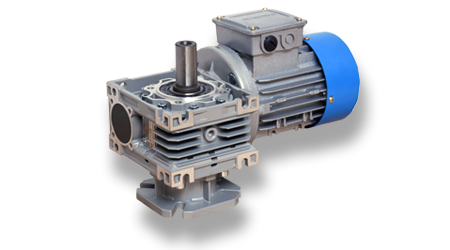

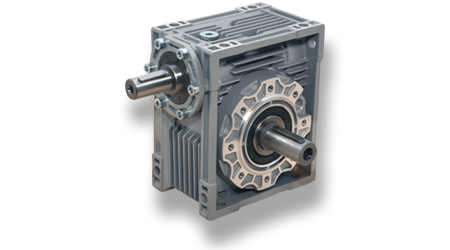

Output Flange, Torque Arm, Single Side Shaft, Double Side Shaft & Non Driven Side Shaft.
Torque Range :
| Model | Max Torque (Nm) |
|---|---|
| TW30 | 24 |
| TW40 | 58 |
| TW50 | 108 |
| TW63 | 200 |
| TW75 | 300 |
| TW90 | 550 |
| TW110 | 1000 |
| TW130 | 1400 |
| TW150 | 2120 |

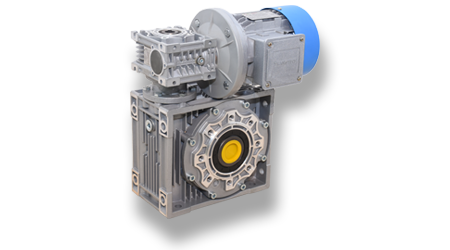

TW/TW Series – Double Worm Gear Boxes
TW/TW Series – Double Worm Gear Box is a combination of two worm gearbox units and it is known for its wide ratio’s – Up to 5000. This series is made of high-quality aluminium alloy up to 90 model & cast iron from 110 model onwards. TW/TW Series comes in compact design and known for its flexible (Universal) mounting options, various optional accessories help mounting options further more flexible.

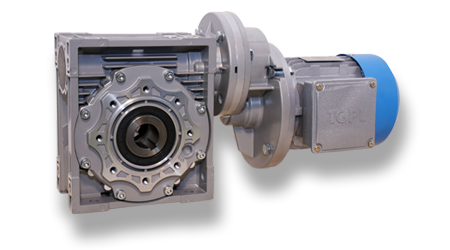

HL-TW Series – Heli Worm Gear Boxes:
HL-TW Series – Heli Worm Gear Box is a combination of Helical & worm gearbox units and available up to 300 ratios. This series is made of high-quality aluminium alloy up to 90 model & cast iron from 110 model onwards. HL/TW Series comes in compact designed and known for its flexible (Universal) mounting options, various optional accessories help mounting options further more flexible.
