In-line Helical Gearbox
TH Series Helical Geared Unit is NextGen mechano-electrical integrated product designed for optimum torque density, wide gear ratios & compactness. These are highly reliable & used in various industrial applications under tough operating conditions.
Catalog download

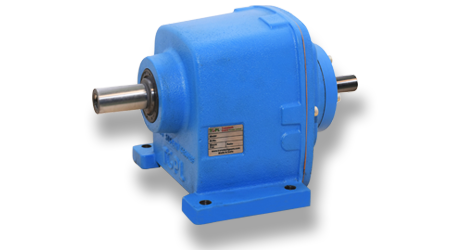

Input for these geared units are IEC motor & Input Solid Shaft (ISS).
INPUT COUPLING

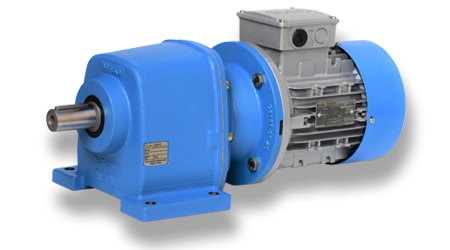

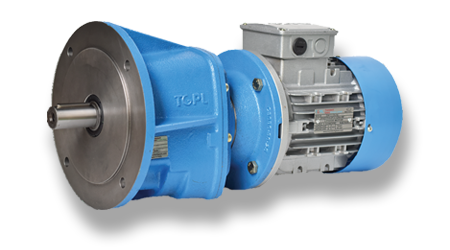

IEC Motors can be connected to TH Series Gearbox using our special coupling. This coupling is modular type & known for its high reliability.
In the event of motor failure this coupling system helps to minimise customer production loss by replacing IEC motor quickly without any damage to Gearbox or Motor flanges!!
Lubrication filled from factory
Configure your own product in three steps
Product Features
- High durability & reliability.
- High torque.
- Quite & noiseless operation.
- Accepts all IEC motors.
- Input coupling helps motor dismantling easy.
- Compact & refined design for effective space utility.
- Wide ratios & versatile mounting.
- Lubricated for life.
- Gears from hardened, case-hardened steel before final profile grounding.
- Cast iron body for all models.
- Power coated (Blue colour - RAL 5015).
Input Power Range
0.12kw to 37kw
Gear Ratios
3.6 to 207.6
Mounting Options

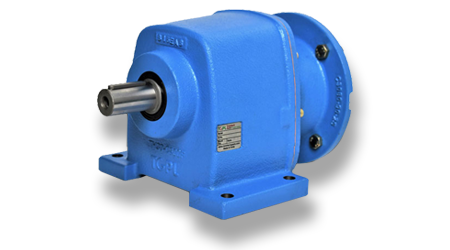

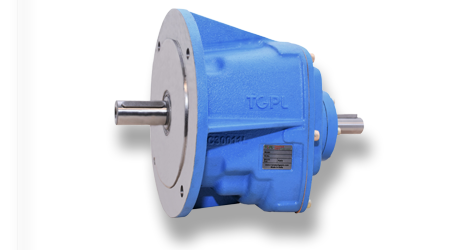

Foot, Flange
Torque Range:
| Model | Max Torque (Nm) |
|---|---|
| TH20 | 126 |
| TH25 | 196 |
| TH30 | 374 |
| TH35 | 495 |
| TH40 | 850 |
| TH50 | 1377 |
| TH60 | 2650 |
| TH80 | 4200 |
